• Easy access to any of the rooms through the 5 entrances.

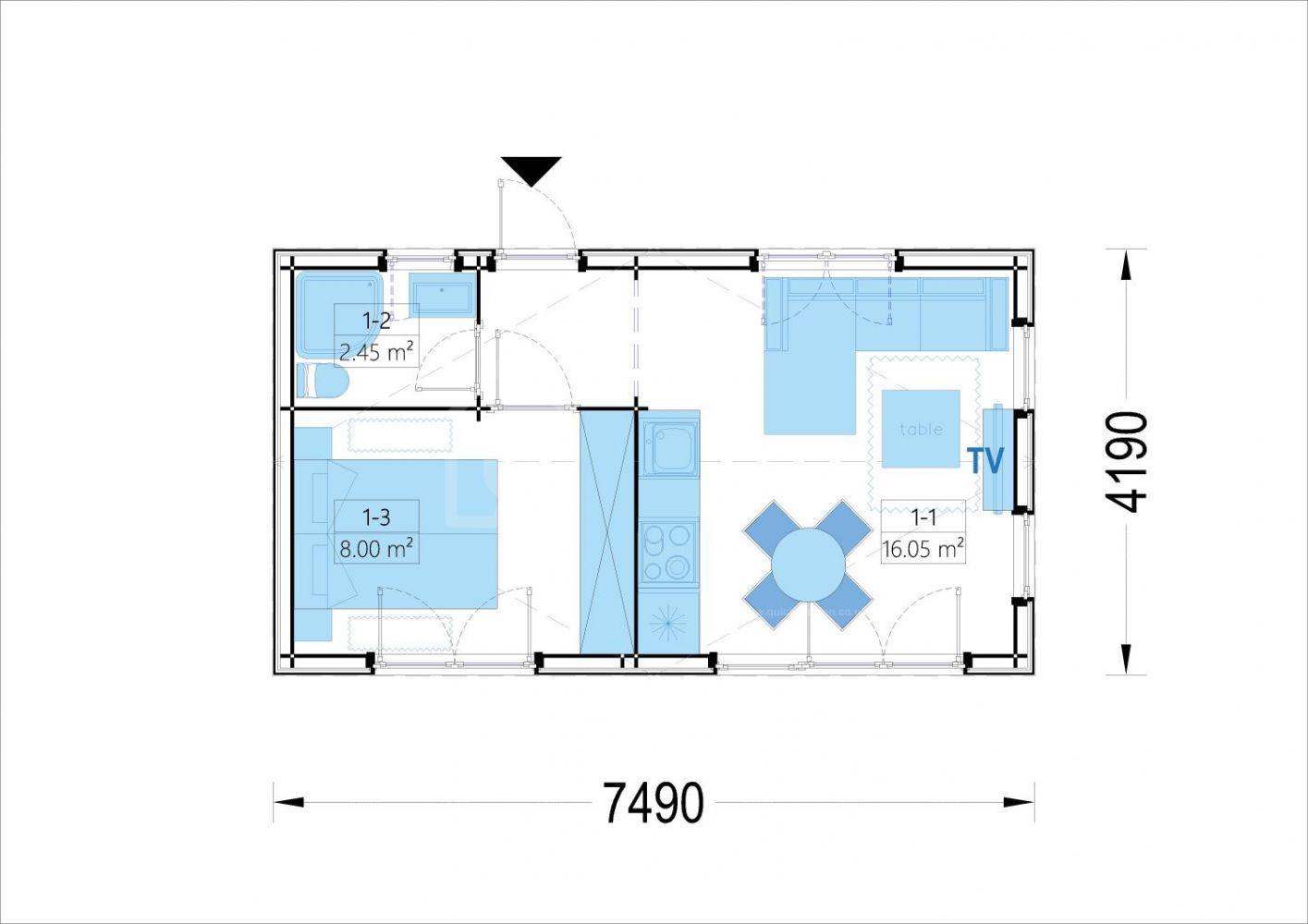

• A 16 m² living room with space for a kitchenette to enjoy each other's company to the fullest.
• Minimalistic, modern design that looks easy on the eye.
• The numerous windows contribute to the rooms feeling bright and airy.
• 100 mm all-around wool insulation that guarantees year-round comfort for longer stays.

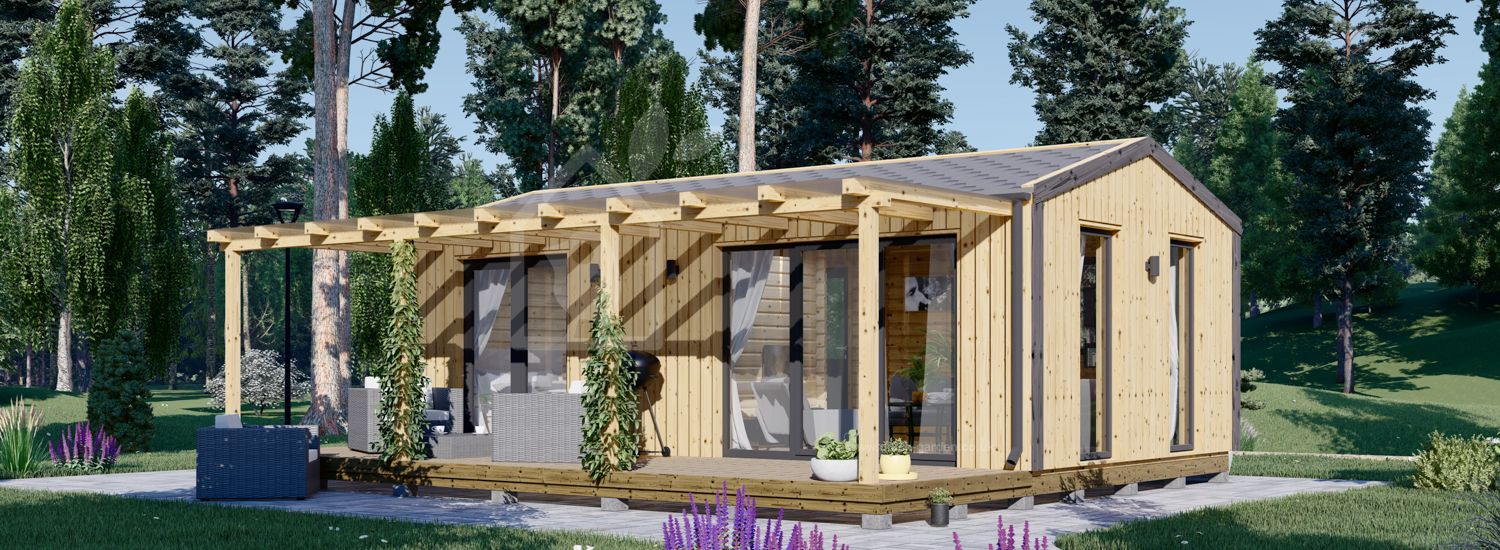

• The ability to add a gazebo allows you to create a special, enchanting outdoor space that can be enjoyed with your beloved.

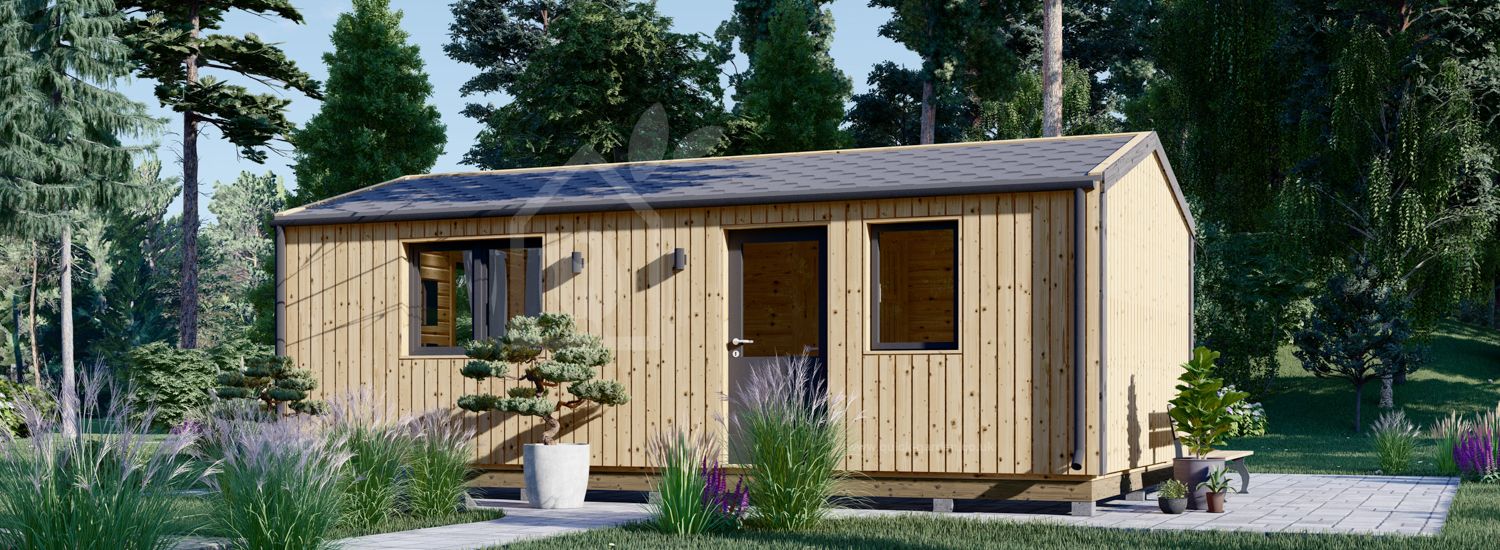

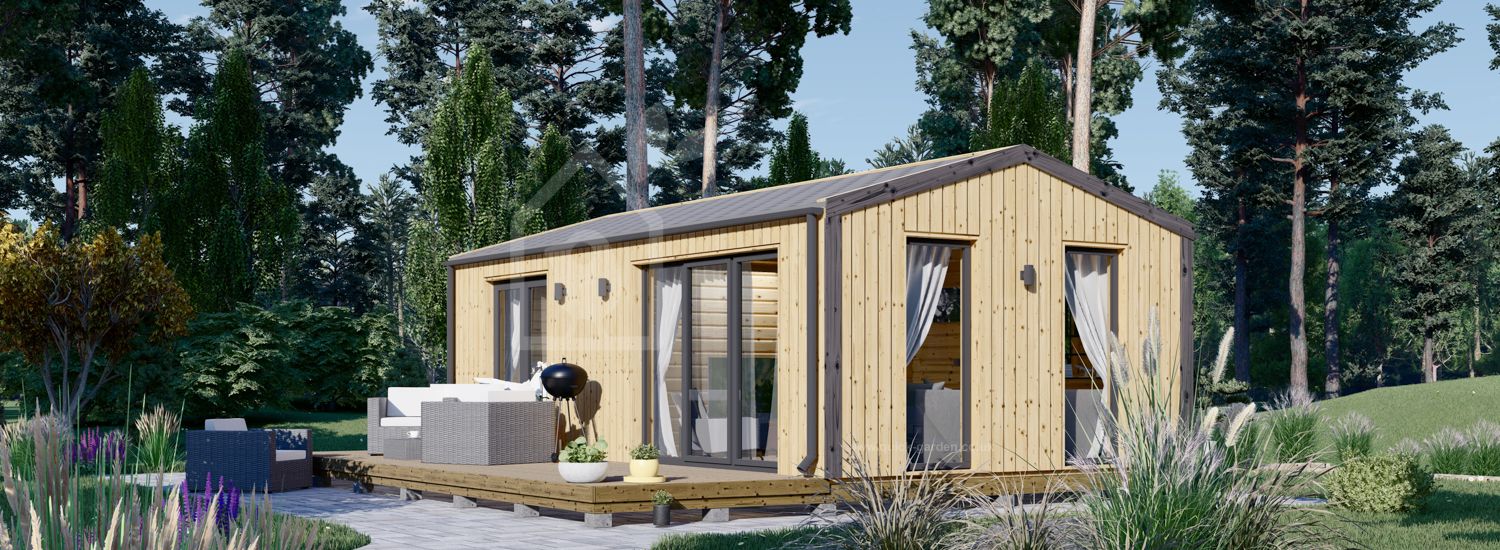

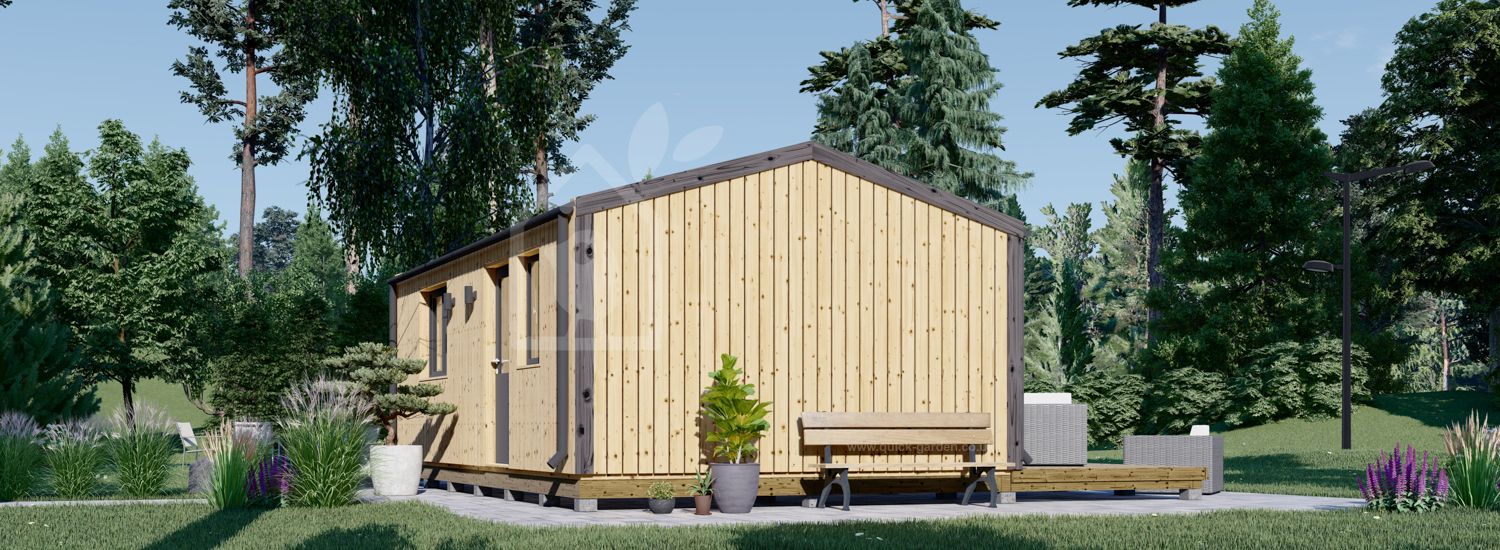

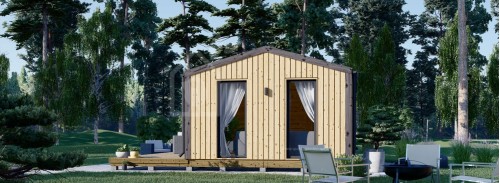

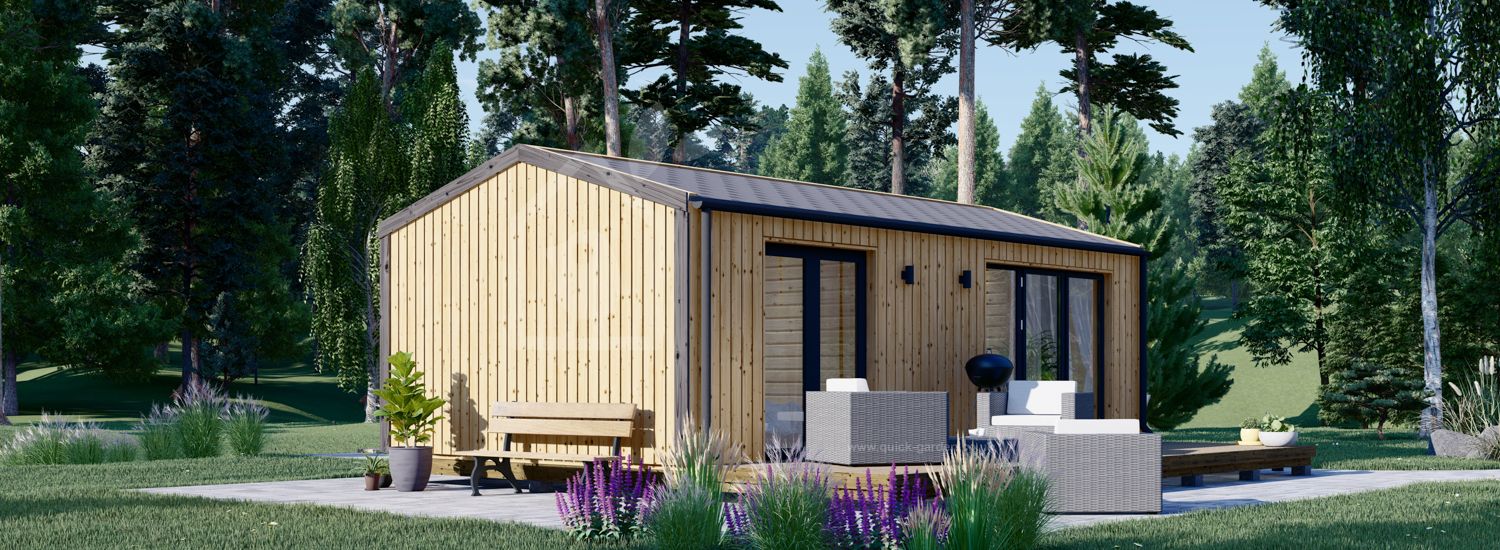

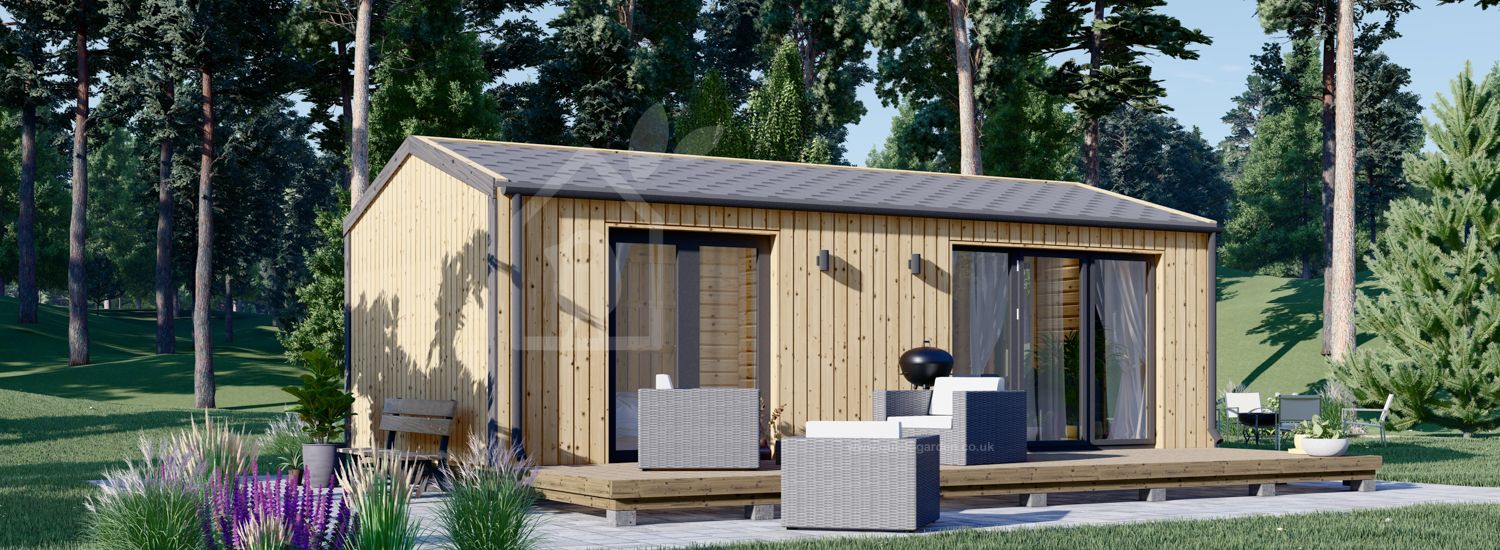

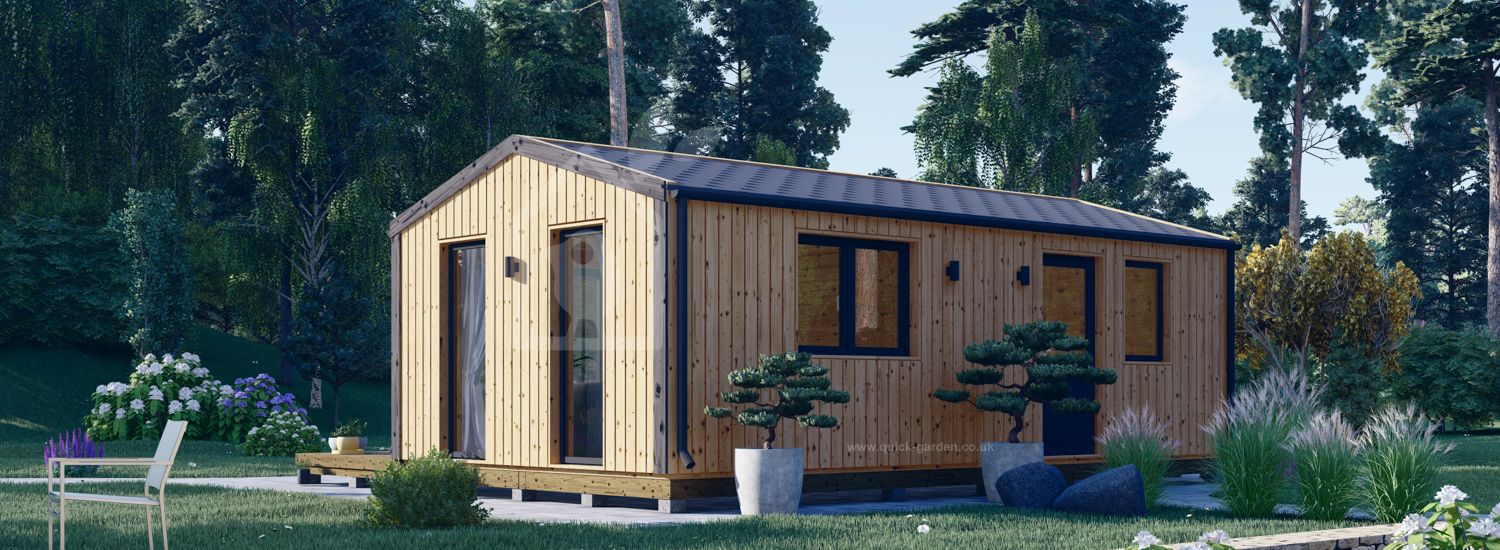

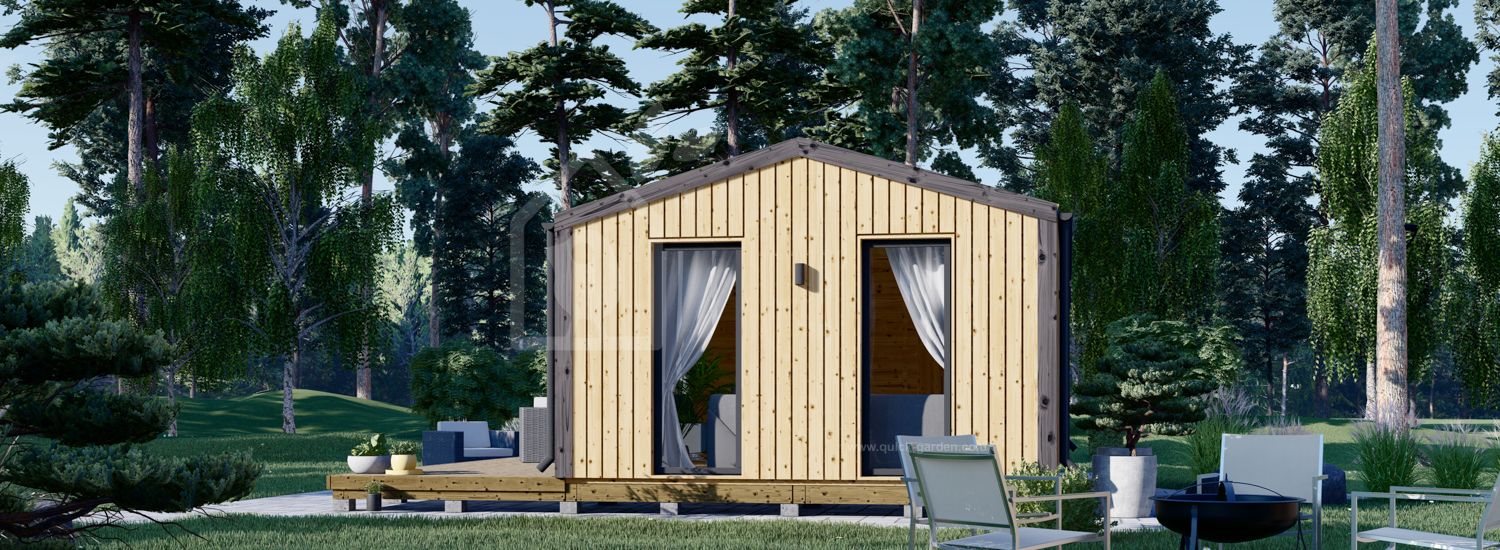

Discover the convenience of a modern, functional design with DIANA. This lovely and compact structure has all it takes for family fun. If you have any guests over, they will certainly enjoy having their own bedroom with a bathroom right next to it, and the ability to socialize in the large common area. This model also comes with all-around insulation and a 10-year warranty, which speaks volumes about the materials used in the structure. Make sure to check out the gazebo with its picturesque pillars and a promise of good times outdoors.
Thermal Insulation
Basic wooden house insulation ensures optimal thermal comfort for longer stays, whether you decide to visit your house in summer or winter months. This insulation version features 100 mm thickness insulation material, used for the walls, roof and floors, providing warmth and cosiness during any month of the year.
| Anti Rot Warranty | 10 Year |
|---|---|
| Doors | 1 * 85 x 192 cm (entrance door) , 1 * 85 x 192 cm, 1 * 70 x 192 cm (internal doors) |

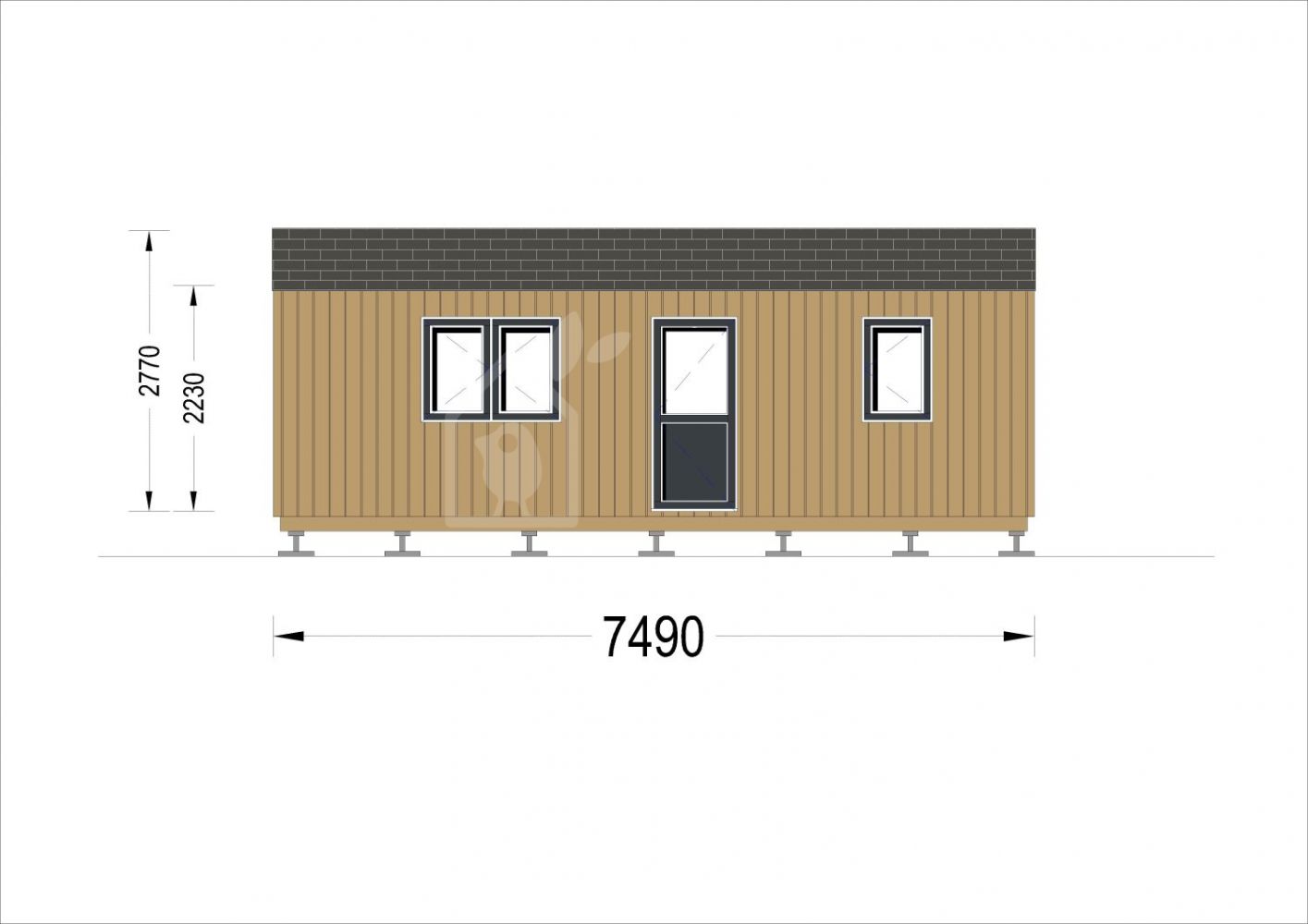

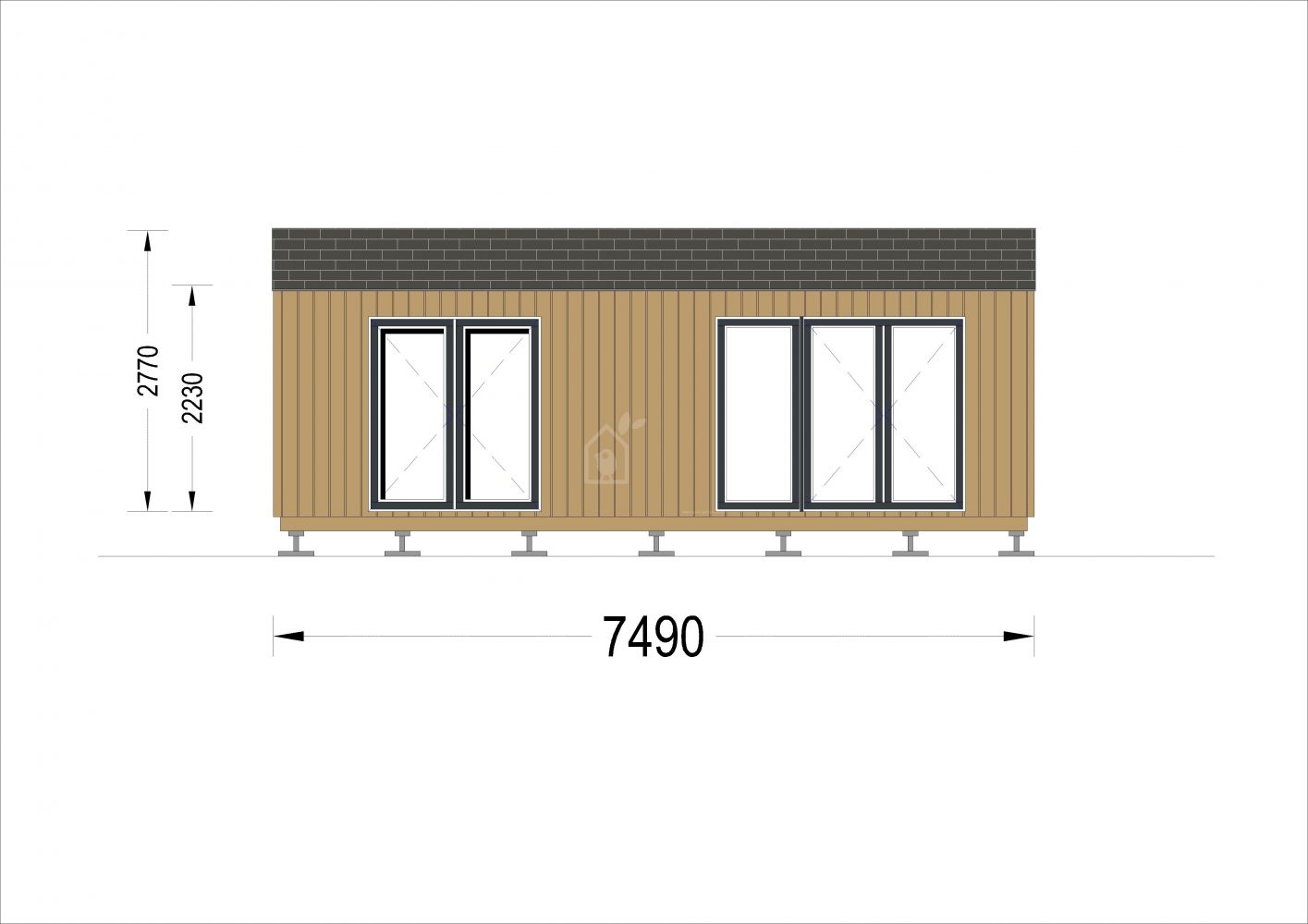

| Eaves height | 223 cm |
| External dimensions (WxD), Metric | 750 x 420 cm |
| Floor | 40-50 mm wooden foundation beams (with 100 mm insulation); 19 - 20 mm thick tongue & groove boards |
| Floor area | 26.50 m² |
| Material | Slow grown spruce |
| Ridge Height | 277 cm |
| Roof | 34 x 135 mm wooden rafters; 19 - 20 mm thick tongue & groove boards, 100 mm timber batten (with 100 mm insulation), 25 mm timber batten, OSB plate; |
| Roof Area | 35 m² |
| Roof Covering Material | Optional |

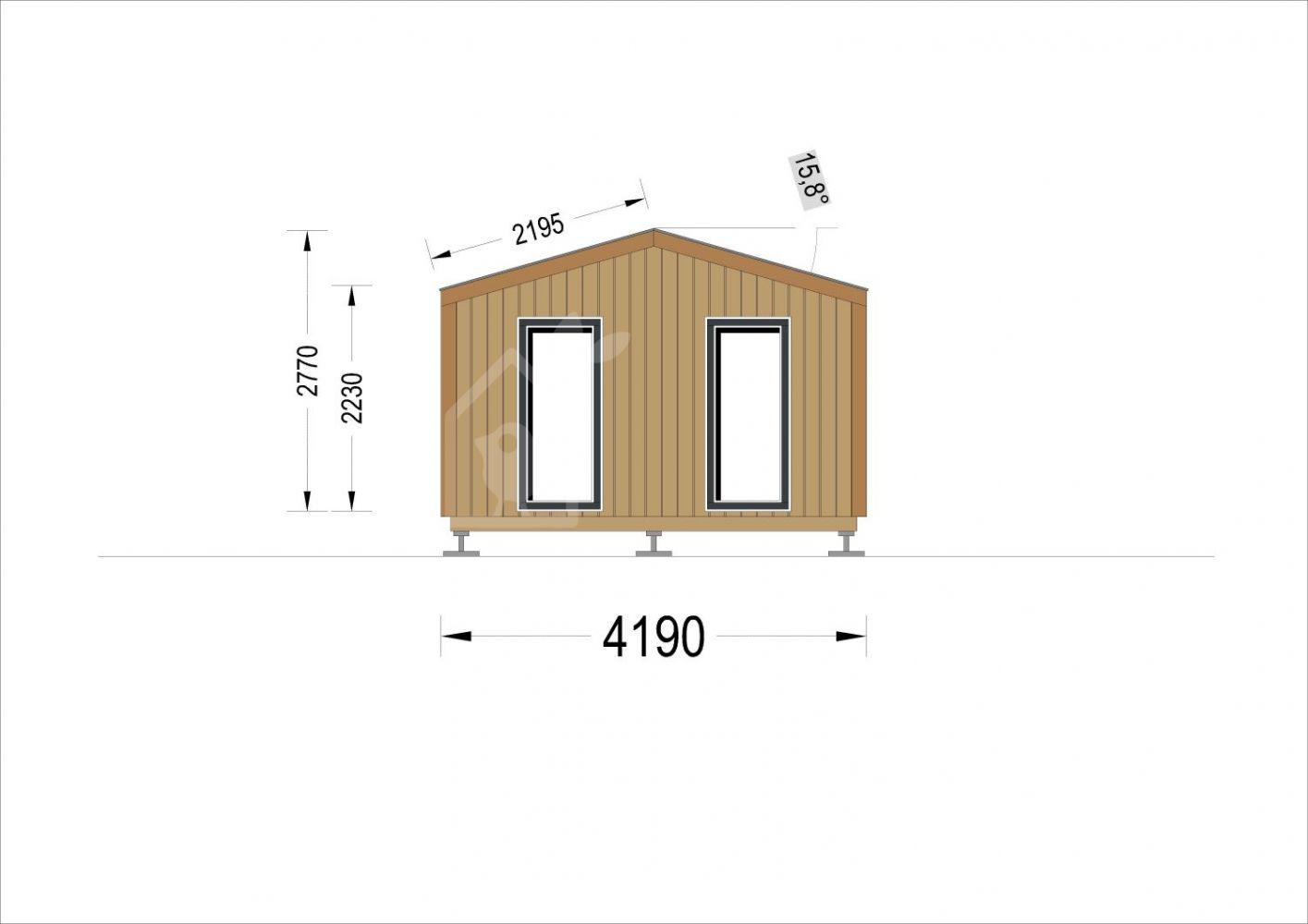

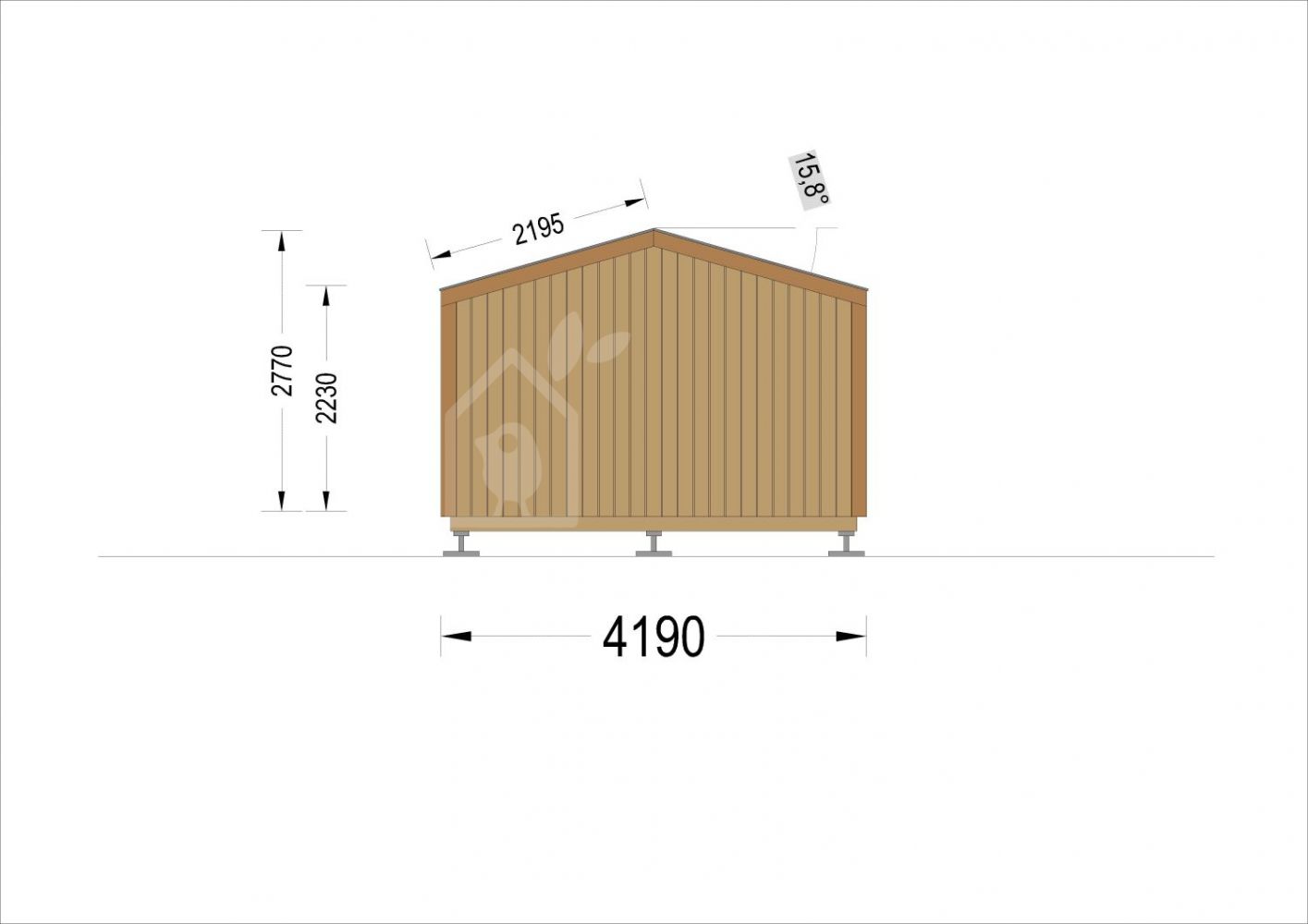

| Roof Slope Ratio | 16° |
| Total Number of Rooms | 3 |

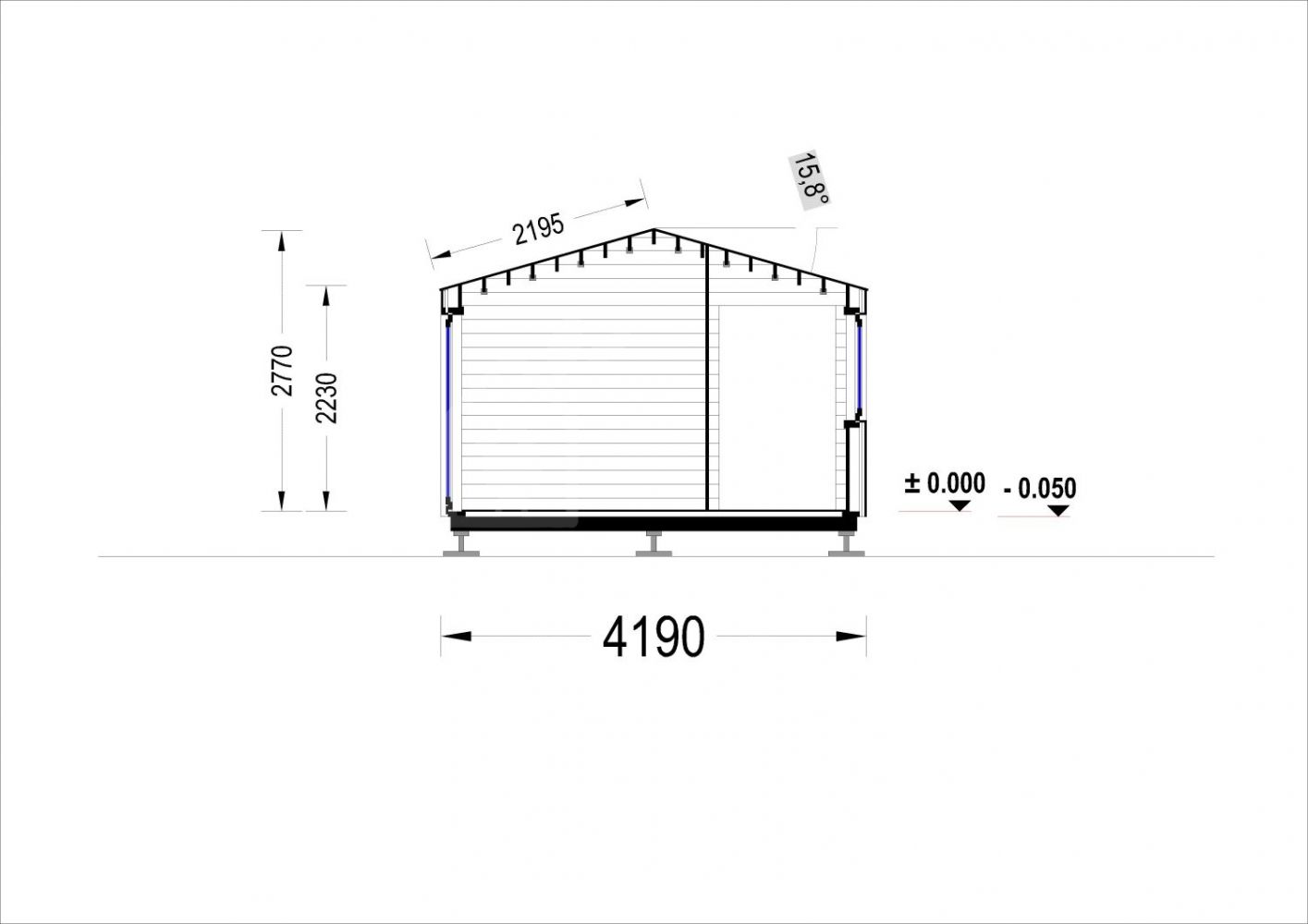

| Wall | 34 mm wooden log; 100 mm timber frame (with 100 mm insulation); 25 mm timber batten (vertical); 25 mm timber batten (horizontal); 18 - 20 mm timber cladding |
| Windows | 1 * 70 x 105 cm, 1 * 138 x 105 cm, 3 * 85 x 192 cm (vitrine), 2 * 161 x 192 cm (balcony door) |
| Wood Treatment | Optional |
-
There are no reviews for this product.
-
No questions yet
We install and assemble the product you purchased on-site. What you need to do is prepare the foundation (sub-basement) according to the plan. You can make the foundation with concrete, bims, curb, or metal.
For example, we set up and deliver a 50m² house within 1 week. The installation of the house + all doors and windows + floorboards + ceiling boards are our responsibility. We hand over the keys after the wooden structure is assembled.
Since we only work with wood, we do not perform interior decoration. Electricity + water + bathroom + kitchen, and roof insulation are your responsibility.
(if there is a bulk order, we can provide a turnkey price thanks to our solution-oriented partner companies)
Our headquarters is in Antalya. For orders of 1 unit, transportation is the customer's responsibility. For orders of at least 4 units and multiples, transportation is our responsibility.
